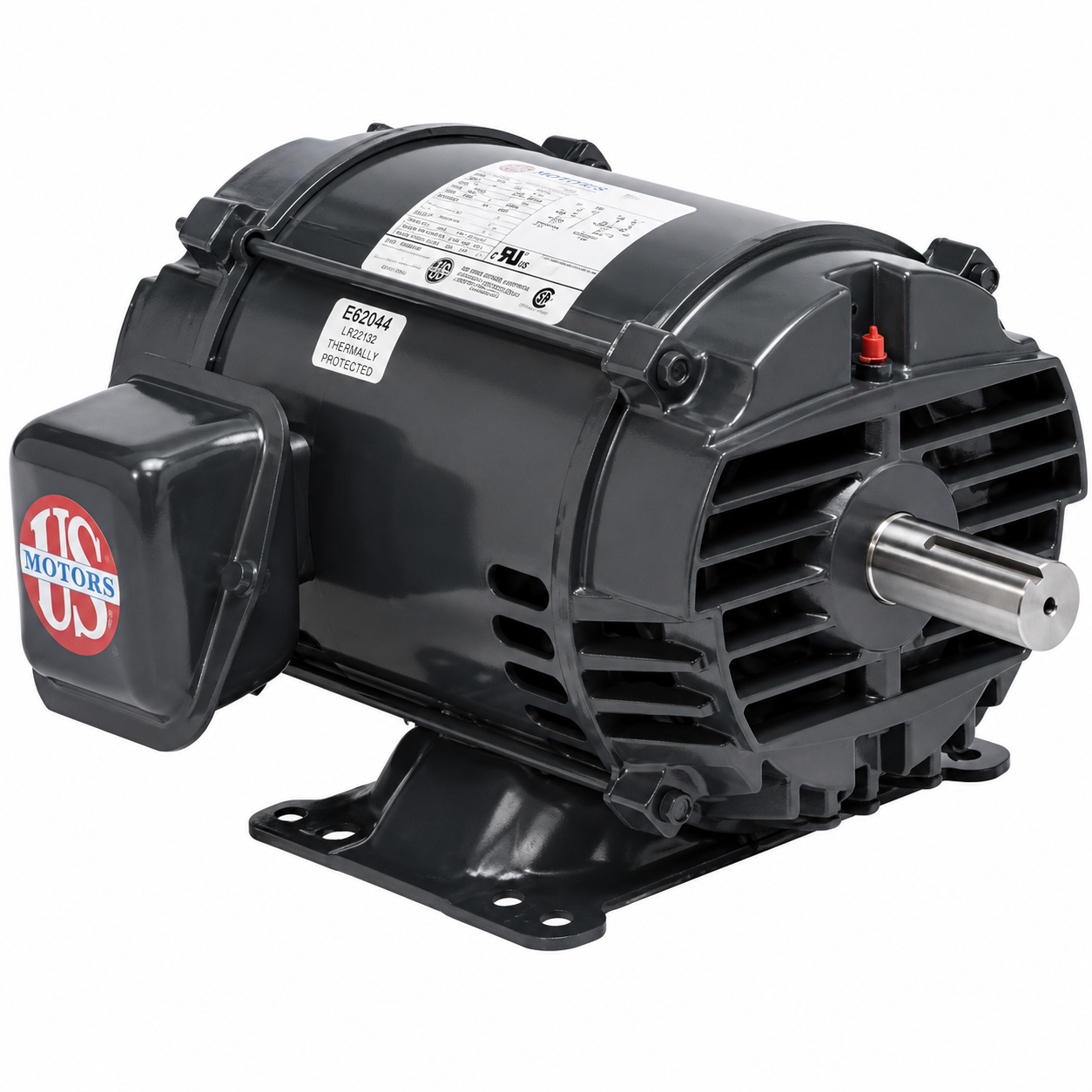

US Motors Three Phase Motor (HVAC/R) D7P1G - 7.5 HP - 575 V - 3600 RPM - Three phase
US Motors Three Phase Motor (HVAC/R) D7P1G - 7.5 HP - 575 V - 3600 RPM - Three phase

US Motors Three Phase Motor (HVAC/R) D7P1G - 7.5 HP - 575 V - 3600 RPM - Three phase

US Motors
$861.00
$861.00
Quantity must be 1 or more
  • Horsepower :7.5
  • Voltage :575
  • Amps :7.30
  • RPM :3600
  • Frequency :60 Hz
  • "C" Dim. :15.0"
  • Enclosure :Open Drip-Proof
  • Type :Three Phase
  • Speeds :1
  • Frame :184T
  • Efficiency :88.5%
  • Bearings :Ball
  • Rotation :Reversible
  • Protector :None
  • Service Factor :1.15
  • Phase :3
  • Ambient Temp. :40°C
  • Feature(s) :Class 'F' Insulation, Aluminum End Shields 56-250, Cast Iron End Shields 280-440, Rigid Base
  • Weight (lbs.) :60
