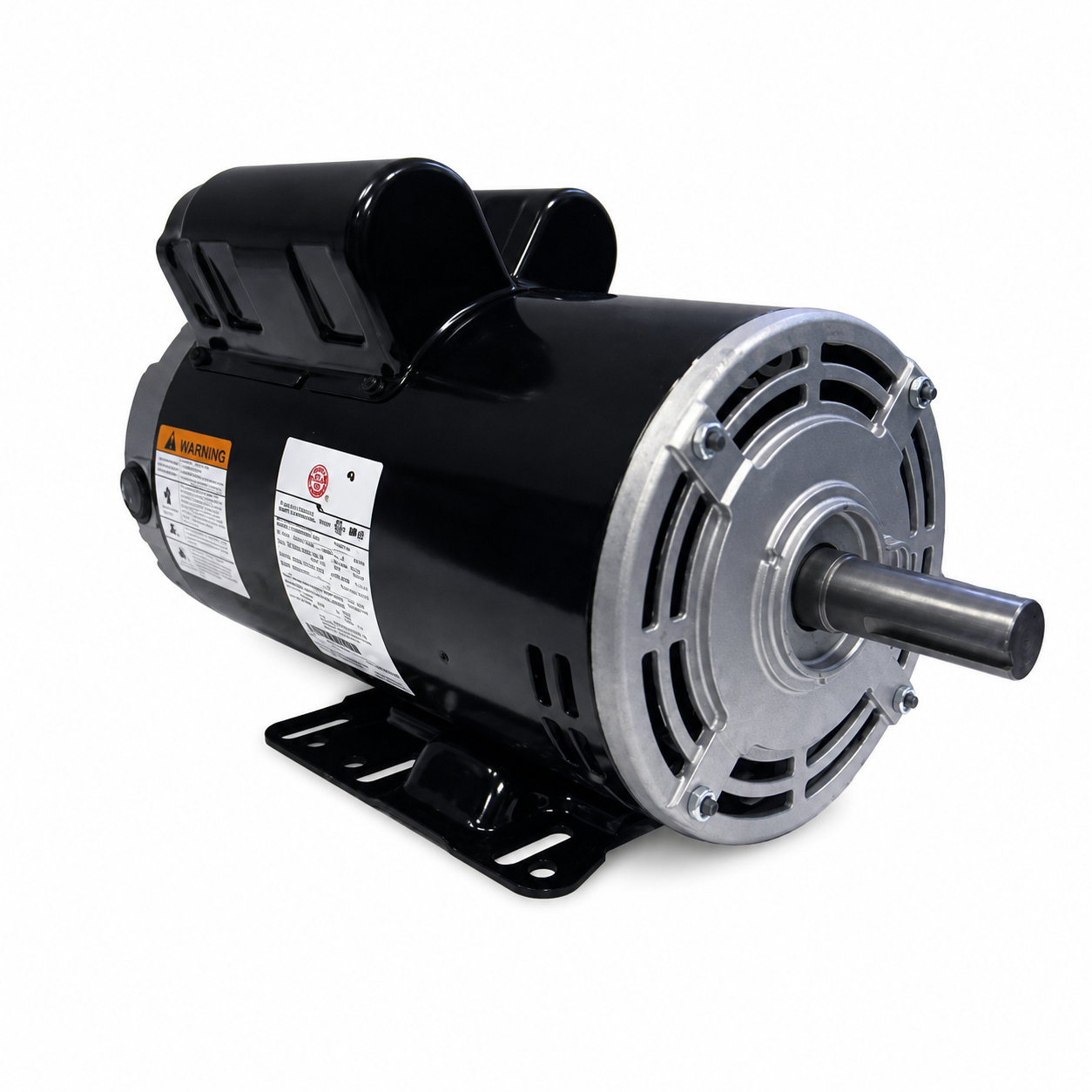

US Motors Air Compressor Motor D5CM1K14 - 5 HP - 208/230 V - 3450 RPM - Single phase
US Motors Air Compressor Motor D5CM1K14 - 5 HP - 208/230 V - 3450 RPM - Single phase

US Motors Air Compressor Motor D5CM1K14 - 5 HP - 208/230 V - 3450 RPM - Single phase

US Motors
$444.00
$444.00
La quantité doit être supérieure ou égale à 1
  • HP : 5
  • Voltage : 208-230
  • RPM : 3450
  • Current (Amp) : 22.50-22.00
  • Phase : 1
  • Rotation : Counterclockwise Shaft End
  • Frame : 56HZ
  • Enclosure : Open Drip Proof
  • Speeds : 1
  • Protector : Manual
  • Ambient Temp : 40°C
  • Service Factor : 1.00
  • Shaft Dimensions : 0.625 in X 2.36 in
  • Frequency : 60Hz
  • Diameter : 6.5 in
  • Frame Length : 14.42 in
  • Bearings : Ball
  • Capacitor Rating : 40-370
  • Features : Class F Insulation, Rigid Base Mount, 5/8" Diameter Keyed Shaft
  • Weight: 43 lbs
  • Reference : A.O.Smith C56AB22E29, Century B386 164621 177660 181732 186001 186513 193618, Emerson P63BVDGJ1726 T63BVCKN1376 T63BVCYZ1573 T63BVWBZ1538  T63CWCEC1260 T63CWCFE1282, Emerson Stock No. G740, Leeson 111275.00, Marathon D017
