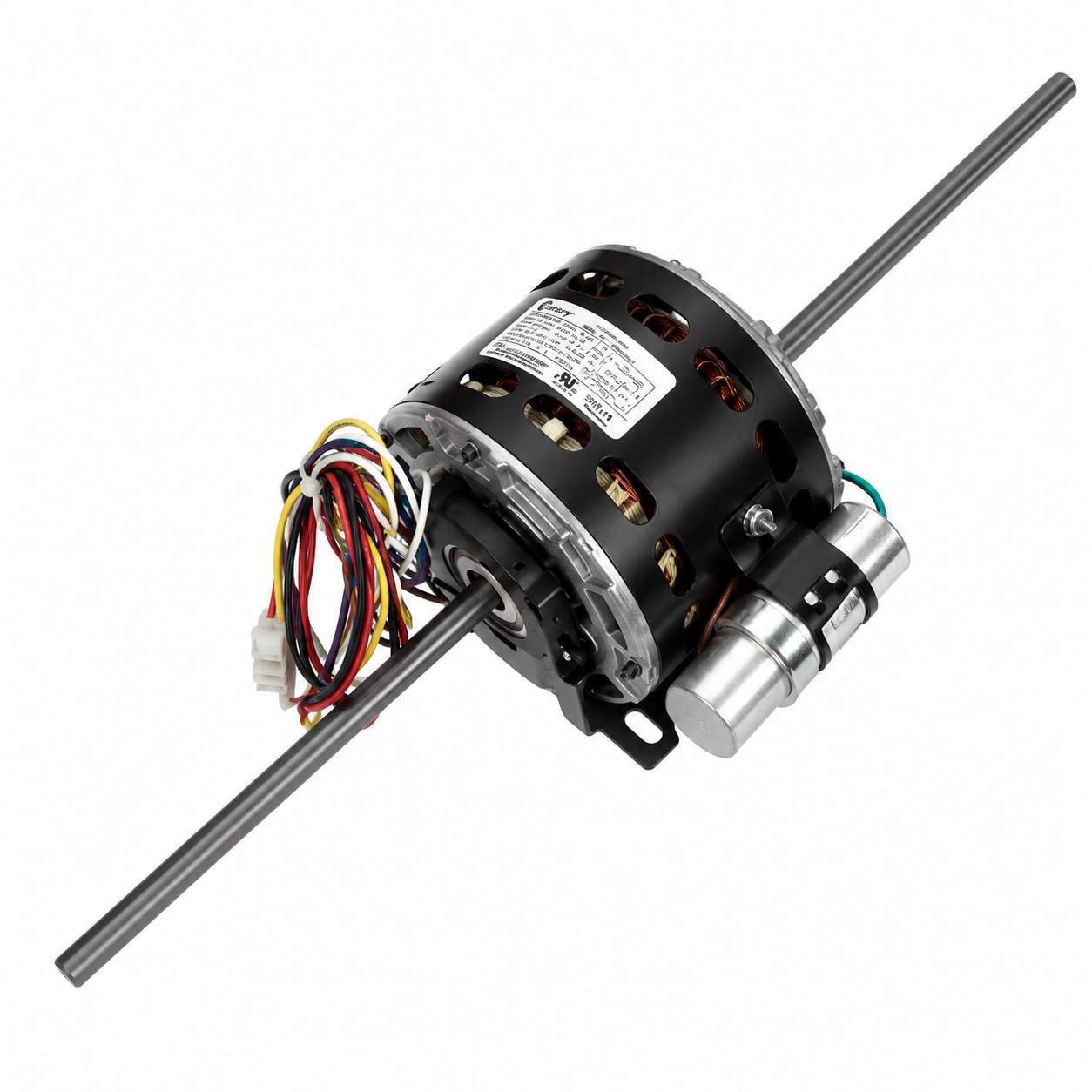

Century Fan Coil Motors (HVAC/R) 452A - 1/20 HP - 115 V - 1075 RPM - Single phase
Century Fan Coil Motors (HVAC/R) 452A - 1/20 HP - 115 V - 1075 RPM - Single phase

Century Fan Coil Motors (HVAC/R) 452A - 1/20 HP - 115 V - 1075 RPM - Single phase

Century
$458.00
$458.00
Quantity must be 1 or more
  • Horsepower :1/20
  • Voltage :115
  • Amps :0.8
  • RPM :1075
  • Frequency :60 Hz
  • Length :3-1/2"
  • "C" Dim. :23"
  • Enclosure :Open
  • Shaft Dim. :9-3/4" x 1/2" x 9-3/4"
  • Type :Permanent Split Capacitor
  • Speeds :4
  • Diameter :5"
  • Frame :42Y
  • Bearings :Sleeve
  • Rotation :CWLE
  • Protector :Automatic
  • Service Factor :1.00
  • Phase :1
  • Ambient Temp. :40°C
  • Capacitor Rating :6MFD/370VAC
  • Feature(s) :Resilient Base, 1/2" Shafts, Class 'A' Insulation
  • Weight (lbs.) :11

  • Reference : A.O. Smith DE3D481, A.O. Smith DE3D7481, Dayton 4UU15, Dayton 5M038, Fasco 7186-3034, U.S. Motors 1270, 602154
